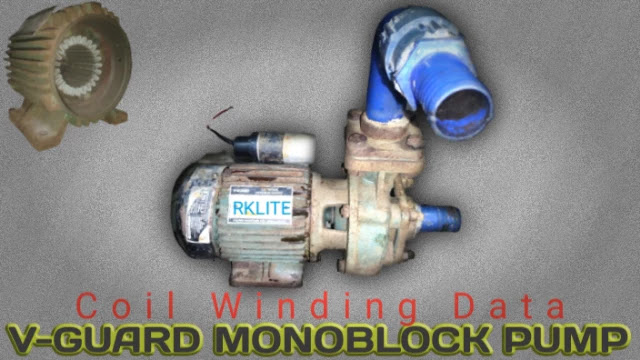

V-GUARD CENTRIFUGAL MONO BLOCK PUMP SET
- Brand: V-Guard Product
- Model: VCE-H40
- Product Type: Centrifugal Pump
- Power: Hp : 0.5,kW : 0.37
- Pipe Size (cm/inch) Suction : 4.0/1.5
- Delivery : 4.0/1.5
- Other Details
- Weight 23 kg
- Generic Type Centrifugal Pumps
- Total Head In Meters/Feet Discharge In L PH 6//20
- Single phase
- capacitor Start & Run
- TYPE: VCE-H40
- Voltage: 240 50HZ AC KW/HP: 0.37/0.5
- Capacitor start: 25MFD 440AC
- INSUL: Class 'B'
- Speed: 2800 R.P.M
- Pipe Size: 40*40mm
This v-guard mono block pump motor coil winding full process.
Today we will learn in this post.
How to make brand V-Guard,Product Model VCE-H40 water motor pump motor coil winding data Mono block pump motor, coil winding data, and rewinding data, with connection diagram, PDF
Practical A.C. single phase motor how to winding and rewinding
Key Features for winding
0.5 HP V-Guard Mono block Water Pump Is This is a motor has 2 coils a running coil a stating coil, Running is 4 coils and Starting 3 coils,
fast winding running coil,2nd winding starting coil, Rotation Clockwise when viewed from the motor end, Let's get started one by one.
Let's get started fast running coil rewinding details.
24 Slot high speed ceiling fan winding
Running total coil: 4
Running coil pitch setting : 1-6,1-8,1-10,1-12
Running total coil turn: 31,51,51,51=184
Coil setting: 1-6 coil turn: 31
Coil setting: 1-8 coil turn: 51
Coil setting: 1-10 coil turn: 51
Coil setting: 1-12 coil turn: 51
Running wire gauge RWG: 26+26
Total coil weight approx: 450 grams.
Let's get started 2nd starting coil rewinding details.
Submersible Motor An Introduction
Starting total coil: 3
Starting coil pitch setting: 1-8,1-10,1-12
Starting total coil turn : 30,90,90=210
Coil setting: 1-8 coil turn: 30
Coil setting: 1-10 coil turn: 90
Coil setting: 1-12 coil turn: 90
Starting wire gauge SWG: 26
Total coil weight approx: 280 grams.
The End
V-guard centrifugal mono block pump
motor winding connection diagram and pdf coming soon,,,
