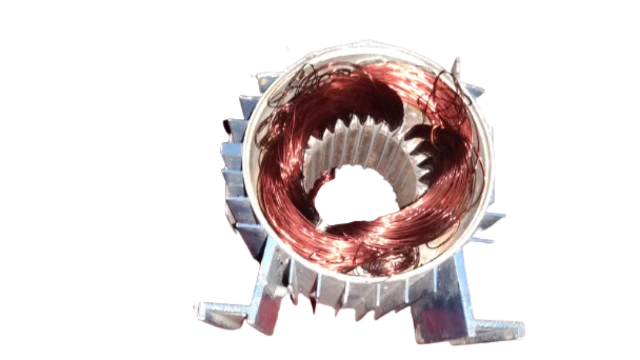

Mini Samudra II 0.5 HP water motor pump motor coil winding data,

• Crompton Greaves pump motor is a manufacturer of all kinds items so good,
• Every model of Crompton Greaves pumps is motor winding data with the utmost care.
• Almost all manufactured pumps the good.
• Find all the pump models of Crompton Greaves pump motor data please check to click here

Today we will learn in this post.

 How to make Mini Samudra II 0.5 HP water motor pump motor coil winding data Monoblock pump motor, coil winding data, and rewinding data, with connection diagram, PDF

Specifications :

Crompton Greaves Pump-Mini Samudra II, Single Power Rating 0.5 HP and 0.37 KW, Speed 2880 RPM, Voltage Rating 180 to 240 Volts Frequency 50Hz, for Single phase motor, Capacitor rating of 0.5 HP mini-pump motor 10 mfd to use this coil, CG Self Priming Pump Motor, "Mini-Series" Can Be Used In requirements House, Apartments, Hotels, Small Farms,  Garages, Flats, Laundries, Clubs Hospitals, And More, Extra Extra.



Key Features for winding

0.5 HP Cri Centrifugal Monoblock Water Pump Is This motor has 2 coils a running coil a stating coil, Running is 4 coils and Statting 4 coils, fast winding running coil,2nd winding statting coil, Rotation Clockwise when viewed from the motor end, Let's get started one by one.

Let's get started fast running coil rewinding details.

Running total coil: 4

Running coil pitch setting : 1-6,1-8,1-10,1-12

Running total coil turn: 296

Coil setting: 1-6 coil turn: 45

Coil setting: 1-8 coil turn: 51

Coil setting: 1-10 coil turn: 100

Coil setting: 1-12 coil turn: 100

Running wire gauge RWG: 27

Total coil weight approx: 250 grams.


Half hp motor winding

14 Slot all ceiling fan winding and rewinding data

0.5 hp motor coil winding

Submersible motor coil winding data and details PDF file

0.5 hp motor winding diagram

Pedestal fan motor winding data

Crompton motor winding data

https://coilwindingdata.blogspot.com/2021/04/pedestal-fan-motor-winding-data-with.html

Crompton greaves motor winding data

 Let's get started 2nd starting coil rewinding details.

Starting total coil: 4

Starting coil pitch setting: 1-6,1-8,1-10,1-12

Starting total coil turn : 45,55,115,115

Coil setting: 1-6 coil turn: 45

Coil setting: 1-8 coil turn: 55

Coil setting: 1-10 coil turn: 115

Coil setting: 1-12 coil turn: 115

Starting wire gauge SWG:28

Total coil weight approx: 185 grams.

The End

Cri centrifugal monoblock pump

motor winding connection diagram and pdf coming soon,,,
